Centrifugal Pump Minimum Flow Calculator

Power Input (\( P_{BHP} \)):

Specific Heat of Fluid (\( c_p \)):

Specific Gravity (\( SG \)):

Minimum Flow Rate (\( q \)) in Gallons per Minute (gpm):

Minimum Flow Rate (\( q \)) in Liters per Second (L/s):

Minimum Flow Rate (\( q \)) in Cubic Meters per Hour (m³/h):

1. What is the Centrifugal Pump Minimum Flow Calculator?

Definition: This calculator computes the minimum flow rate (\( q \)) required through a centrifugal pump to prevent the fluid from vaporizing, based on the power input (\( P_{BHP} \)), specific heat of the fluid (\( c_p \)), and specific gravity (\( SG \)).

Purpose: It is used in mechanical engineering to ensure safe operation of centrifugal pumps by maintaining sufficient flow to avoid cavitation, which can lead to catastrophic failures.

2. How Does the Calculator Work?

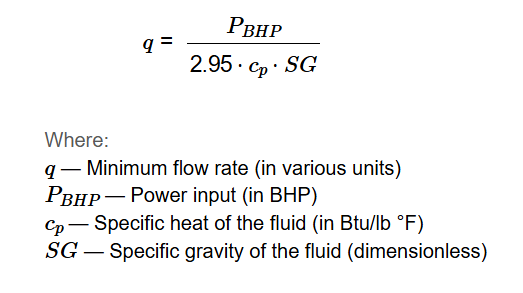

The calculator uses the relationship:

\[ q = \frac{P_{BHP}}{2.95 \cdot c_p \cdot SG} \]

Where:

\( q \) — Minimum flow rate (in various units)
\( P_{BHP} \) — Power input (in BHP)
\( c_p \) — Specific heat of the fluid (in Btu/lb °F)
\( SG \) — Specific gravity of the fluid (dimensionless)

Explanation: Enter the power input, select a fluid to use its predefined specific heat (\( c_p \)) or input a custom value, and provide the specific gravity. The power input is converted to BHP, and the specific heat is converted to Btu/lb °F. The minimum flow rate is calculated as \( q = \frac{P_{BHP}}{2.95 \cdot c_p \cdot SG} \), assuming a 15°F temperature rise in the pump casing. Results are displayed with 5 decimal places, using scientific notation if the value exceeds 100,000 or is less than 0.0001. For default inputs (\( P_{BHP} = 10 \, \text{BHP} \), \( c_p = 1 \, \text{Btu/lb °F} \) for Acetic Acid, \( SG = 1 \)), the calculated minimum flow rate \( q \) is approximately 3.38983 gpm.

3. Importance of Centrifugal Pump Minimum Flow Calculation

Details: Calculating the minimum flow rate for a centrifugal pump is essential to prevent cavitation, which occurs when the fluid vaporizes within the pump. This ensures the pump operates safely, avoids damage, and maintains efficient performance in fluid handling systems.

FAQ

How do I calculate the minimum flow rate for a centrifugal pump?

Measure the power input (\( P_{BHP} \)), select a fluid or input the specific heat of the fluid (\( c_p \)), and provide the specific gravity (\( SG \)). Compute the minimum flow rate using the formula \( q = \frac{P_{BHP}}{2.95 \cdot c_p \cdot SG} \). The result will be in gallons per minute (gpm).

What does the minimum flow rate represent?

The minimum flow rate (\( q \)) represents the smallest flow rate required through a centrifugal pump to prevent the fluid from vaporizing, ensuring the pump operates without cavitation.

What is the formula for the minimum flow rate?

The formula for the minimum flow rate is \( q = \frac{P_{BHP}}{2.95 \cdot c_p \cdot SG} \), where \( P_{BHP} \) is the power input in BHP, \( c_p \) is the specific heat in Btu/lb °F, and \( SG \) is the specific gravity. The standard unit for flow rate in this calculator is gpm.

Can I use different units for power input and specific heat?

Yes, the calculator supports multiple units for power input (BHP, kW, hp) and specific heat (Btu/lb °F, kJ/kg °C for custom values). All inputs are converted to BHP and Btu/lb °F, respectively, for the calculation.

What happens if I enter zero for the specific heat or specific gravity?

Entering zero for the specific heat (\( c_p \)) or specific gravity (\( SG \)) will result in the calculation not being performed, as the formula involves division by these values. Both must be greater than zero for a valid result.
