Centrifugal Pumps - Full Load Torque Calculator

Full Load Torque (\( T \)) in Kilonewton-meters (kNm):

Full Load Torque (\( T \)) in Newton-meters (Nm):

Full Load Torque (\( T \)) in Foot-pounds (ft-lb):

1. What is the Full Load Torque Calculator?

Definition: This calculator computes the torque (\( T \)) at full load for a rotating system, such as a pump or motor, based on the power input (\( P \)) and rotational speed (\( n \)).

Purpose: It is used in mechanical engineering to determine the torque required to drive a system at full load, which is critical for motor sizing, system design, and performance optimization.

2. How Does the Calculator Work?

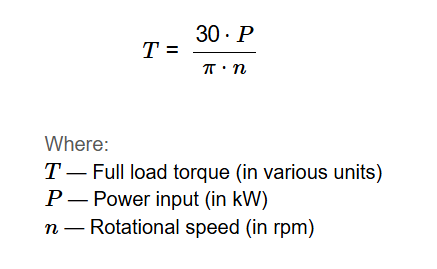

The calculator uses the relationship:

\[ T = \frac{30 \cdot P}{\pi \cdot n} \]

Where:

\( T \) — Full load torque (in various units)
\( P \) — Power input (in kW)
\( n \) — Rotational speed (in rpm)

Explanation: Enter the power input and rotational speed in the chosen units. The power is converted to kW, and the rotational speed is converted to rpm. The full load torque is calculated as \( T = \frac{30 \cdot P}{\pi \cdot n} \). Results are displayed with 5 decimal places, using scientific notation if the value exceeds 100,000 or is less than 0.0001. For default inputs (\( P = 10 \, \text{kW} \), \( n = 1800 \, \text{rpm} \)), the calculated full load torque \( T \) is approximately 0.05305 kNm.

3. Importance of Full Load Torque Calculation

Details: Calculating the full load torque is essential for selecting the appropriate motor or pump for a system, ensuring that the system can handle the required load without stalling, and optimizing performance in applications such as pumps, fans, and conveyors.

FAQ

How do I calculate the full load torque?

Measure the power input (\( P \)) in kW and the rotational speed (\( n \)) in rpm. Compute the full load torque using the formula \( T = \frac{30 \cdot P}{\pi \cdot n} \). The result will be in kilonewton-meters (kNm).

What does the full load torque represent?

The full load torque (\( T \)) represents the torque required to drive a system at its maximum load, indicating the rotational force needed to maintain the system's operation at the specified power and speed.

What is the formula for the full load torque?

The formula for the full load torque is \( T = \frac{30 \cdot P}{\pi \cdot n} \), where \( P \) is the power input in kW, and \( n \) is the rotational speed in rpm. The standard unit for torque in this calculator is kNm.

Can I use different units for power input and rotational speed?

Yes, the calculator supports multiple units for power input (kW, hp, BHP) and rotational speed (rpm, rad/s, Hz). All inputs are converted to kW and rpm, respectively, for the calculation.

What happens if I enter zero for the rotational speed?

Entering zero for the rotational speed (\( n \)) will result in the calculation not being performed, as the formula involves division by \( n \). The rotational speed must be greater than zero for a valid result.
