Pump Affinity Laws Calculator - Changing Pump Speed

Calculate:

Initial Flow Capacity (\( q_1 \)):

Initial Head (\( dp_1 \)):

Initial Power Consumption (\( P_1 \)):

Initial Speed (\( n_1 \)):

Final Speed (\( n_2 \)):

Final Value in Brake Horsepower (BHP):

Final Value in Kilowatts (kW):

Final Value in Horsepower (hp):

1. What is the Pump Affinity Laws Calculator?

Definition: This calculator applies the Pump Affinity Laws to compute the final flow capacity (\( q_2 \)), final head (\( dp_2 \)), or final power consumption (\( P_2 \)) when the pump speed changes, assuming a constant impeller size.

Purpose: It is used in mechanical engineering to predict the performance changes in a pump system due to speed variations, aiding in design, optimization, and operational adjustments.

2. How Does the Calculator Work?

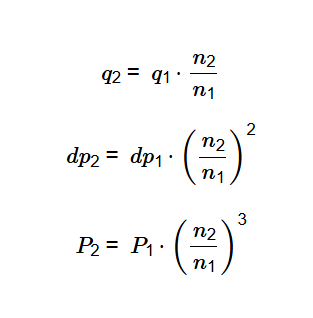

The calculator uses the following relationships:

\[ q_2 = q_1 \cdot \frac{n_2}{n_1} \] \[ dp_2 = dp_1 \cdot \left( \frac{n_2}{n_1} \right)^2 \] \[ P_2 = P_1 \cdot \left( \frac{n_2}{n_1} \right)^3 \]

Where:

\( q_2 \) — Final flow capacity (in various units)
\( q_1 \) — Initial flow capacity
\( dp_2 \) — Final head (in various units)
\( dp_1 \) — Initial head
\( P_2 \) — Final power consumption (in various units)
\( P_1 \) — Initial power consumption
\( n_2 \) — Final speed
\( n_1 \) — Initial speed

Explanation: Select the parameter to calculate (final flow, final head, or final power), enter the corresponding initial value (flow, head, or power), initial speed, and final speed in the chosen units. The initial value is converted to its base unit (gpm for flow, ft for head, BHP for power), and the speeds are converted to rpm. The final value is computed based on the selected affinity law. Results are displayed with 5 decimal places, using scientific notation if the value exceeds 100,000 or is less than 0.0001. For default inputs (\( q_1 = 100 \, \text{gpm} \), \( n_1 = 1750 \, \text{rpm} \), \( n_2 = 3500 \, \text{rpm} \)), the calculated final flow \( q_2 \) is approximately 200.00000 gpm.

3. Importance of Pump Affinity Laws Calculation

Details: Calculating the changes in flow, head, and power consumption using the Pump Affinity Laws is essential for adjusting pump performance, optimizing energy use, and ensuring system efficiency when changing operating speeds.

FAQ

How do I calculate the final flow, head, or power for a pump speed change?

Select the parameter to calculate (flow, head, or power), enter the corresponding initial value (flow, head, or power), initial speed, and final speed in the chosen units. Use the formulas \( q_2 = q_1 \cdot \frac{n_2}{n_1} \), \( dp_2 = dp_1 \cdot \left( \frac{n_2}{n_1} \right)^2 \), or \( P_2 = P_1 \cdot \left( \frac{n_2}{n_1} \right)^3 \) based on your selection.

What do the Pump Affinity Laws represent?

The Pump Affinity Laws describe how flow, head, and power consumption change with pump speed, assuming a constant impeller size, providing a method to predict performance adjustments.

What are the formulas for the Pump Affinity Laws?

The formulas are: \( q_2 = q_1 \cdot \frac{n_2}{n_1} \) for flow, \( dp_2 = dp_1 \cdot \left( \frac{n_2}{n_1} \right)^2 \) for head, and \( P_2 = P_1 \cdot \left( \frac{n_2}{n_1} \right)^3 \) for power, where \( n_1 \) and \( n_2 \) are the initial and final speeds.

Can I use different units for flow, head, power, and speed?

Yes, the calculator supports multiple units for flow (gpm, L/s, m³/h), head (ft, m), power (BHP, kW, hp), and speed (rpm, rad/s, Hz). All inputs are converted to their base units for the calculation.

What happens if I enter zero for the initial speed or final speed?

Entering zero for the initial speed (\( n_1 \)) or final speed (\( n_2 \)) will result in the calculation not being performed, as the formula involves a speed ratio. Both speeds must be greater than zero for a valid result.
