Pump Temperature Rise Calculator

Brake Power (\( P_s \)):

Pump Efficiency (\( \mu \)):

Volume Flow (\( q \)):

Specific Heat (\( c_p \)):

Fluid Density (\( \rho \)):

Temperature Rise (\( dt \)) in Degrees Celsius (°C):

Temperature Rise (\( dt \)) in Degrees Fahrenheit (°F):

1. What is the Pump Temperature Rise Calculator?

Definition: This calculator computes the temperature rise (\( dt \)) in a pump based on the brake power (\( P_s \)), pump efficiency (\( \mu \)), volume flow (\( q \)), specific heat of the fluid (\( c_p \)), and fluid density (\( \rho \)).

Purpose: It is used in mechanical engineering to predict the temperature increase in a pump due to inefficiencies, aiding in thermal management and ensuring safe operation.

2. How Does the Calculator Work?

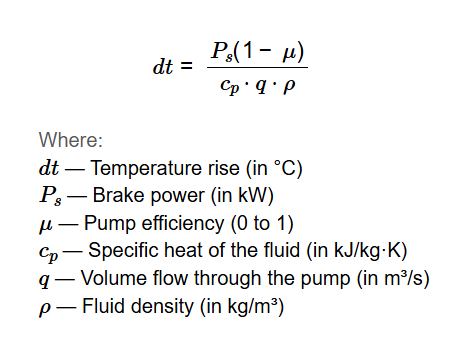

The calculator uses the relationship:

\[ dt = \frac{P_s (1 - \mu)}{c_p \cdot q \cdot \rho} \]

Where:

\( dt \) — Temperature rise (in °C)
\( P_s \) — Brake power (in kW)
\( \mu \) — Pump efficiency (0 to 1)
\( c_p \) — Specific heat of the fluid (in kJ/kg·K)
\( q \) — Volume flow through the pump (in m³/s)
\( \rho \) — Fluid density (in kg/m³)

Explanation: Enter the brake power, pump efficiency, volume flow, specific heat (select a fluid or input a custom value), and fluid density in the chosen units. The power is converted to kW, and the flow is converted to m³/s. The temperature rise is calculated as \( dt = \frac{P_s (1 - \mu)}{c_p \cdot q \cdot \rho} \). Results are displayed with 5 decimal places, using scientific notation if the value exceeds 100,000 or is less than 0.0001. For default inputs (\( P_s = 10 \, \text{kW} \), \( \mu = 0.8 \), \( q = 0.001 \, \text{m³/s} \), \( c_p = 4.19 \, \text{kJ/kg·K} \) for fresh water, \( \rho = 1000 \, \text{kg/m³} \)), the calculated temperature rise \( dt \) is approximately 0.47608 °C.

3. Importance of Pump Temperature Rise Calculation

Details: Calculating the temperature rise in a pump is essential to prevent overheating, ensure fluid stability, and avoid damage to the pump components, particularly in systems with low efficiency or high power input.

FAQ

How do I calculate the temperature rise in a pump?

Enter the brake power (\( P_s \)), pump efficiency (\( \mu \)), volume flow (\( q \)), specific heat of the fluid (\( c_p \)), and fluid density (\( \rho \)) in the chosen units. Compute the temperature rise using the formula \( dt = \frac{P_s (1 - \mu)}{c_p \cdot q \cdot \rho} \). The result will be in degrees Celsius (°C).

What does the temperature rise represent?

The temperature rise (\( dt \)) represents the increase in fluid temperature within the pump due to inefficiencies, indicating the heat generated that must be managed to prevent damage.

What is the formula for the temperature rise?

The formula for the temperature rise is \( dt = \frac{P_s (1 - \mu)}{c_p \cdot q \cdot \rho} \), where \( P_s \) is the brake power in kW, \( \mu \) is the pump efficiency, \( c_p \) is the specific heat in kJ/kg·K, \( q \) is the flow in m³/s, and \( \rho \) is the density in kg/m³. The result is in °C.

Can I use different units for power, flow, and specific heat?

Yes, the calculator supports multiple units for power (kW, hp, BHP), flow (m³/s, gpm, L/s), and allows selection of specific heat for various fluids or custom input (kJ/kg·K). All inputs are converted to their base units for the calculation.

What happens if I enter zero for flow or density?

Entering zero for the volume flow (\( q \)) or fluid density (\( \rho \)) will result in the calculation not being performed, as the formula involves division by these values. Both must be greater than zero for a valid result.
